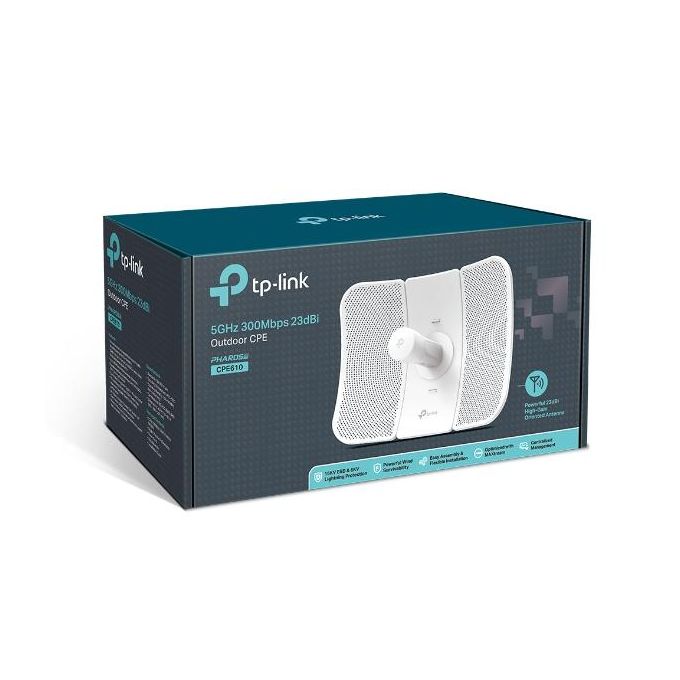

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE – TL-CPE610

Key Specifications

• Wireless Standard: IEEE 802.11a/n
• Frequency: 5 GHz (5.15–5.85 GHz)
• Maximum Wireless Speed: Up to 300 Mbps
• Antenna: Built-in 23 dBi directional 2×2 MIMO Cassegrain antenna
• Beamwidth: 9° horizontal, 7° vertical
• Maximum Transmit Power: Up to 25 dBm (adjustable)
• Ethernet Port: 1 × 10/100 Mbps shielded Ethernet (LAN/PoE)
• Power: 24 V Passive PoE (up to 60 m Ethernet cable)
• Weather Protection: IP65-rated enclosure with 15 kV ESD and 6 kV lightning protection
• Power Consumption: Up to 7.41 W

Key Features

• Supports point-to-point (PtP) and point-to-multipoint (PtMP) wireless links.
• 23 dBi high-gain antenna provides excellent signal focus for long-distance communication.
• Wireless transmission range of up to 30 km under ideal line-of-sight conditions.
• Pharos MAXtream TDMA technology improves throughput and reduces latency in networks with multiple CPEs.
• Managed through the Pharos Control centralized management software or the built-in PharOS web interface.

Ideal Applications

• Long-distance building-to-building network bridges
• Campus and enterprise networking
• Farms and rural internet distribution
• CCTV surveillance backhaul
• Wireless ISP (WISP) deployments
• Connecting remote offices and warehouses

Advantages

• Exceptional long-range performance.
• Narrow beam minimizes interference from nearby wireless networks.
• Rugged outdoor construction for all-weather operation.
• Easy pole mounting with three-axis alignment.
• Passive PoE simplifies installation.
