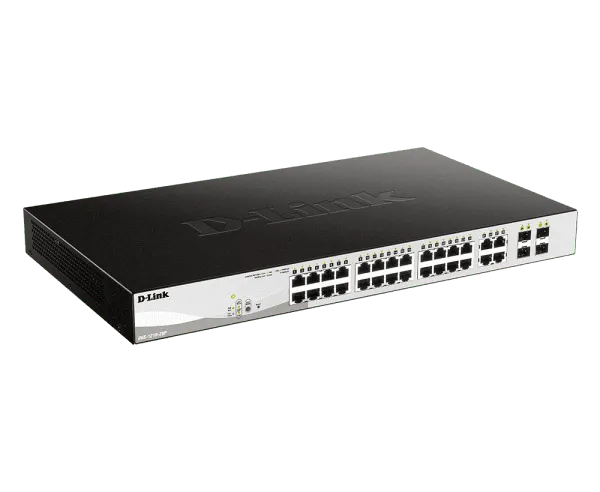

Name: D-Link 26-Port Gigabit Smart Managed PoE+ Switch with 24 PoE+ Ports (8 Long Reach 250m) and 2 SFP Ports - DGS-F1210-26PS
Brand: D-Link
SKU: 55358
Availability: InStock

D-Link 26-Port Gigabit Smart Managed PoE+ Switch with 24 PoE+ Ports (8 Long Reach 250m) and 2 SFP Ports – DGS-F1210-26PS

Key Features

26 Gigabit ports
- 24 × 10/100/1000 Mbps RJ45 PoE+ ports
- 2 × Gigabit SFP uplink ports
Layer 2 Smart Managed switch
IEEE 802.3af/at PoE+ support
230W total PoE power budget
Up to 30W per PoE+ port
Long Reach PoE (Ports 1–8) up to 250 m
6 kV surge protection
19-inch rack-mountable metal chassis with built-in power supply.

10 People watching this product now!

Description

Smart Management Features

The DGS-F1210-26PS provides a comprehensive set of Layer 2 management capabilities suitable for business and surveillance networks:

Web-based management interface
Command Line Interface (CLI)
IEEE 802.1Q VLAN
Port-based and MAC-based VLAN
Auto Voice VLAN
Quality of Service (QoS)
Link Aggregation (LACP)
IGMP Snooping
RSTP, MSTP and ERPS
Access Control Lists (ACL)
DHCP Snooping
IP-MAC-Port Binding
SNMP v1/v2/v3
LLDP
Cable Diagnostics
Port Mirroring
Bandwidth Control
DoS protection
IPv6 Ready.

PoE Performance

The switch can power a wide range of PoE-enabled devices without separate power adapters.

PoE standard: IEEE 802.3af / IEEE 802.3at
Maximum per port: 30W
Total PoE budget: 230W

Suitable for:

IP surveillance cameras
Wireless access points
VoIP phones
Access control terminals
Network intercoms
IoT devices.

Long Reach PoE

A key feature is Long Reach PoE, available on Ports 1–8.

Standard Mode
- Up to 100 m at Gigabit speeds.
Extend Mode
- Up to 250 m using Cat5e/Cat6 cable.
- Link speed is reduced to 10 Mbps, which is well suited for CCTV cameras.

The front-panel DIP switches also provide:

VLAN Mode – isolates edge ports for improved security.
QoS Mode – prioritizes voice and video traffic.
PoE Watchdog – automatically reboots unresponsive PoE devices to reduce downtime.

Specifications

Feature	Specification
Switch Type	Layer 2 Smart Managed
RJ45 Ports	24 × Gigabit PoE+
SFP Ports	2 × Gigabit SFP
PoE Standard	IEEE 802.3af/at
Maximum PoE per Port	30W
Total PoE Budget	230W
Long Reach PoE	250 m (Ports 1–8)
Switching Capacity	52 Gbps
VLAN Support	Up to 4K VLANs
Surge Protection	6 kV
Cooling	1 Fan
Chassis	19-inch rack mount
Built-in Power Supply	Yes

Ideal Applications

The DGS-F1210-26PS is ideal for:

Large IP surveillance systems
Hotels and hospitality
Schools and universities
Office buildings
Warehouses
Retail chains
Industrial environments
Wireless access point deployments
Fiber backbone connectivity between network cabinets or buildings.

Advantages

24 Gigabit PoE+ ports support a high number of powered devices.
230W PoE budget accommodates multiple high-power PoE devices.
Two Gigabit SFP uplinks provide flexible fiber connectivity.
Long Reach PoE on the first eight ports enables camera installations up to 250 m away.
Advanced Layer 2 management features improve performance, monitoring, and security.
Built-in PoE Watchdog helps automatically recover offline IP cameras.
Rack-mountable design with integrated power supply simplifies installation.
